6 × 2 m End-Linked Flat-Pack Kiosk

What Is Included?

The standard bundle comprises:

• 2 × 3 m flat-pack kiosk modules

• 1 × end-to-end linking kit

• Connection components required for the specified arrangement

Counters, shelving, electrical systems, insulation and other optional equipment are not included unless specifically stated in the quotation.

Extended End-Linked Configuration

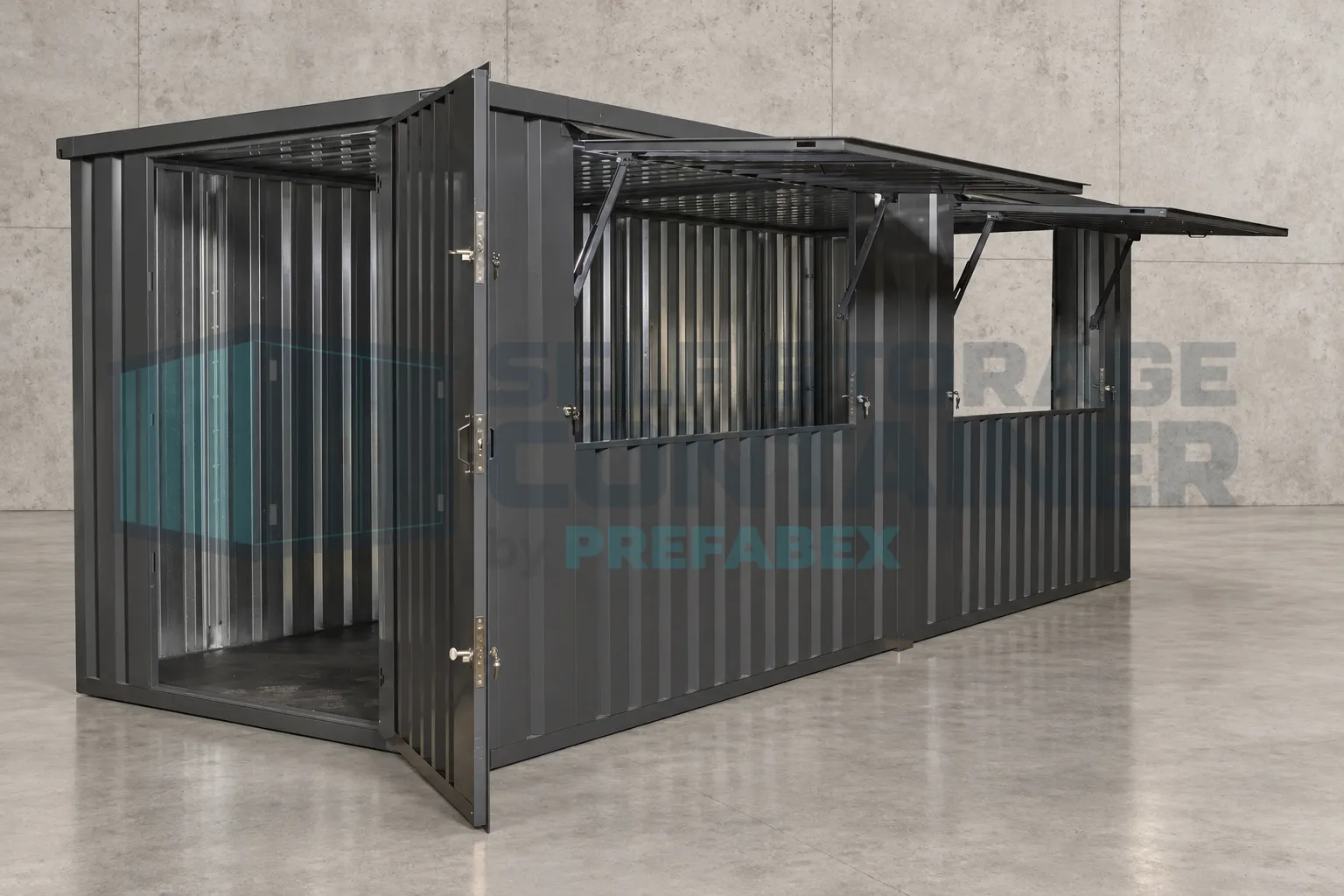

The two kiosk modules are positioned end to end and securely connected using the compatible linking system. The resulting layout has a nominal footprint of approximately 6 × 2 m and provides approximately 11.88 m² of calculated internal floor area before allowances for linking components or internal divisions.

The elongated layout is particularly suitable for businesses that need several operating positions arranged along one side of the structure.

Final assembled dimensions and internal connections must be confirmed in the approved production drawing.

Suitable Applications

The 6 × 2 m end-linked kiosk can be configured for:

• Retail and sales operations

• Food and beverage service

• Ticketing and information services

• Event and exhibition facilities

• Visitor reception and registration

• Equipment rental and collection

• Security and access control

• Construction-site service centres

• Transport terminals and car parks

• Temporary commercial facilities

• Seasonal markets and outdoor venues

• Multi-window customer-service operations

Multiple Service Points

Each 3 m kiosk module can incorporate a service hatch measuring approximately 1.98 m wide × 1.03 m high.

The end-linked configuration can therefore provide up to two substantial service openings arranged along the extended side of the kiosk. These hatches can operate as:

• Two independent customer-service points

• Separate ordering and collection windows

• Sales and information counters

• Payment and product-delivery stations

• Separate service areas for different departments

When raised, the hatch panels can provide partial overhead protection above the service points, subject to installation conditions. When closed, they help protect the interior, stock and equipment outside operating hours.

Flexible Doors and Operational Zones

Each module can include a door opening measuring approximately 1.75 × 2.05 m. Depending on the approved configuration, the completed kiosk can provide separate entrances for staff, stock and equipment.

The extended layout allows the interior to be organised into different working areas, including:

• Customer-service counters

• Sales and display zones

• Preparation areas

• Storage and stock sections

• Payment and collection points

• Staff workstations

• Electrical and communications areas

Door positions, service-hatch orientation and internal access between modules must be confirmed before production.

Galvanised-Steel Construction

Both kiosk modules are manufactured using galvanised-steel components selected for structural strength, durability and resistance to everyday environmental exposure.

Profiled steel wall and roof panels increase rigidity while providing a robust, low-maintenance finish. Galvanised-steel internal surfaces are suitable for demanding commercial and operational environments.

Durable OSB Flooring

Each kiosk module is supplied with a 15 mm OSB board floor suitable for counters, shelving, stock and general operating equipment.

Each module floor can support up to 1,500 kg when the load is distributed evenly. The two-module configuration therefore provides a combined distributed capacity of up to 3,000 kg, provided the load is correctly distributed across the two independent floor structures.

Heavy equipment, concentrated loads or appliances with small contact points should be reviewed before installation.

Efficient Flat-Pack Transportation

The kiosk is transported as two dismantled 3 m modules together with the compatible end-linking kit.

Each module weighs approximately 460 kg in flat-packed form, giving an estimated total module weight of 920 kg, excluding the linking kit and optional accessories. The heaviest dismantled component of each module weighs approximately 122 kg.

The flat-pack system provides several logistical benefits:

• Reduced shipping and storage volume

• Efficient international transportation

• Simplified destination handling

• Faster deployment than conventional construction

• Easier relocation and reconfiguration

• Efficient delivery of multiple units in one shipment

• Expandable layouts for developing projects

Suitable lifting equipment, trained installers and a properly prepared level base are required for unloading and assembly.

Technical Specifications

Combined Configuration

Specifications of Each 3 m Module

Nominal dimensions are used for commercial identification. Exact assembled dimensions may vary according to roof projections, linking components, door positions and the approved project configuration.

Available Colours

The kiosk can be supplied in a selection of standard RAL colours:

• RAL 9005 – Jet Black

• RAL 7021 – Black Grey

• RAL 7016 – Anthracite Grey

• RAL 5011 – Steel Blue

• RAL 3020 – Traffic Red

• RAL 1015 – Light Ivory

• RAL 6005 – Moss Green

• RAL 6018 – Yellow Green

• RAL 5010 – Gentian Blue

• RAL 9002 – Grey White

• RAL 1028 – Melon Yellow

• RAL 7040 – Window Grey

RAL 7016 – Anthracite Grey provides a modern and professional appearance suitable for retail, industrial and public-facing applications. Colour availability should be confirmed during quotation.

Optional Equipment

Available options may include:

• Internal service counters

• Shelving and storage systems

• Electrical distribution

• Internal and external lighting

• Power and data outlets

• Thermal insulation

• Alternative door positions

• Modified service-hatch arrangements

• Security locks and accessories

• Adjustable levelling feet

• Custom exterior colours

• Preparation for customer branding

All required options should be specified before production so their compatibility with the linked configuration can be confirmed.

Expandable Modular Design

The end-linked system provides flexibility for developing businesses and temporary projects. Additional compatible modules may be incorporated into a larger configuration where the structural design, site dimensions and access conditions allow.

The individual modules can also be dismantled, relocated or reconfigured when operational requirements change.

Manufactured and Exported Worldwide

Self Storage Container by Prefabex manufactures and supplies flat-pack kiosks and linked modular systems for commercial, industrial and public-service applications worldwide.

Our manufacturing capabilities support individual products and larger multi-unit orders. Colours, openings, internal layouts and selected accessories can be adapted to the requirements of each project.

Request a Quote

Contact us for pricing, manufacturing information and international delivery options for the 6 × 2 m End-Linked Flat-Pack Kiosk.

For an accurate quotation, please provide:

• Required quantity

• Destination country and delivery location

• Intended application

• Preferred exterior colour

• Required service-hatch arrangement

• Door and internal-access requirements

• Electrical or insulation requirements

• Required accessories
