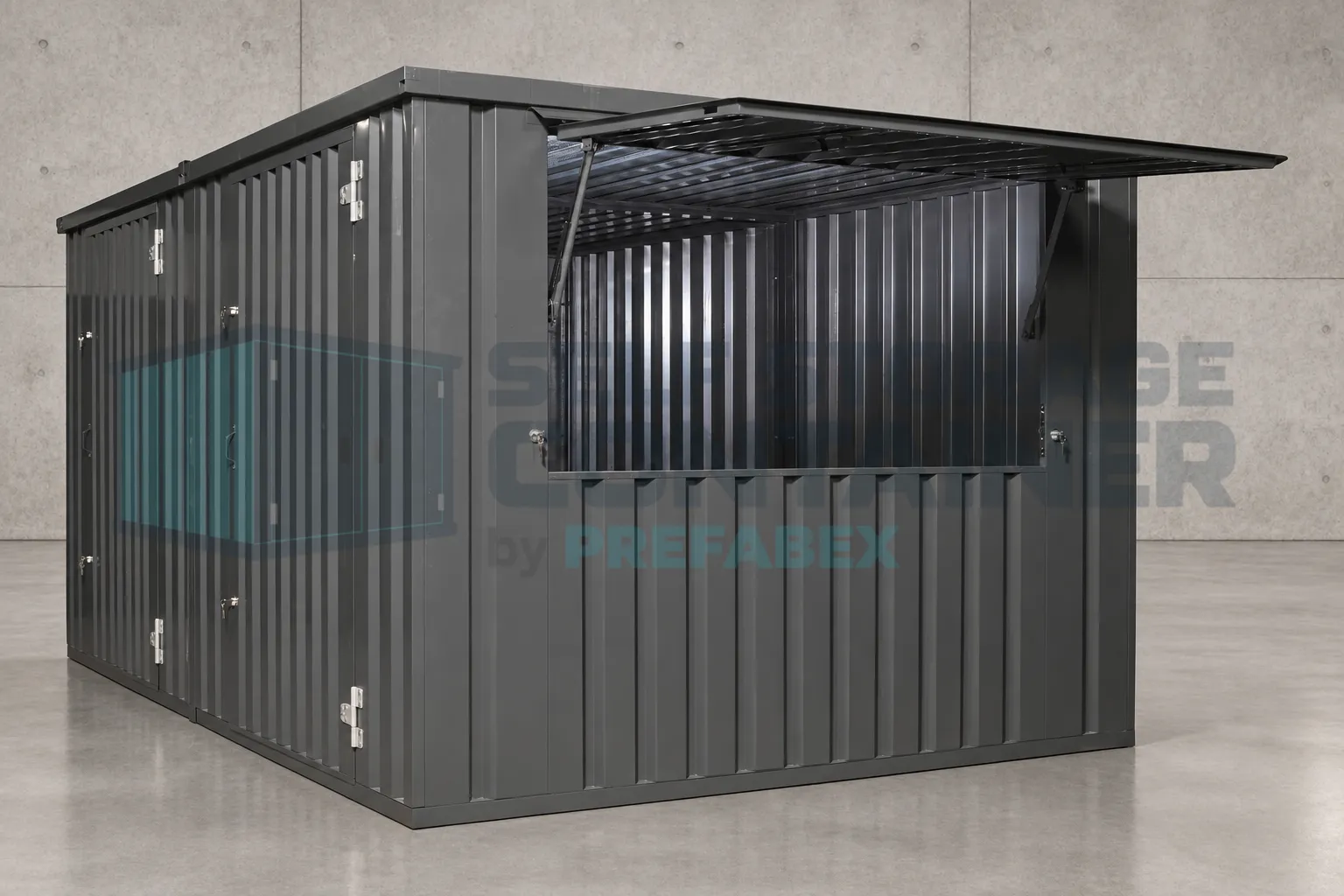

3 × 4 m Side-Linked Flat-Pack Kiosk

What Is Included?

The standard bundle comprises:

• 2 × 3 m flat-pack kiosk modules

• 1 × side-by-side linking kit

• Required connection components for the specified configuration

Counters, shelving, electrical systems, insulation and other optional equipment are not included unless stated in the quotation.

A Larger Modular Kiosk Configuration

The two kiosks are installed alongside one another and connected using the matching linking system. Depending on the required layout, the configuration can provide either coordinated operating areas or a more open, connected internal arrangement.

The combined system offers approximately 11.88 m² of calculated internal floor area before allowing for linking components or any internal divisions. Final usable space and opening arrangements depend on the approved production drawing.

This larger footprint is suitable for:

• Retail and sales outlets

• Food and beverage kiosks

• Ticketing and information centres

• Event and exhibition facilities

• Visitor reception points

• Equipment rental and collection centres

• Security and access-control facilities

• Construction-site service centres

• Transport terminals and car parks

• Temporary or seasonal commercial operations

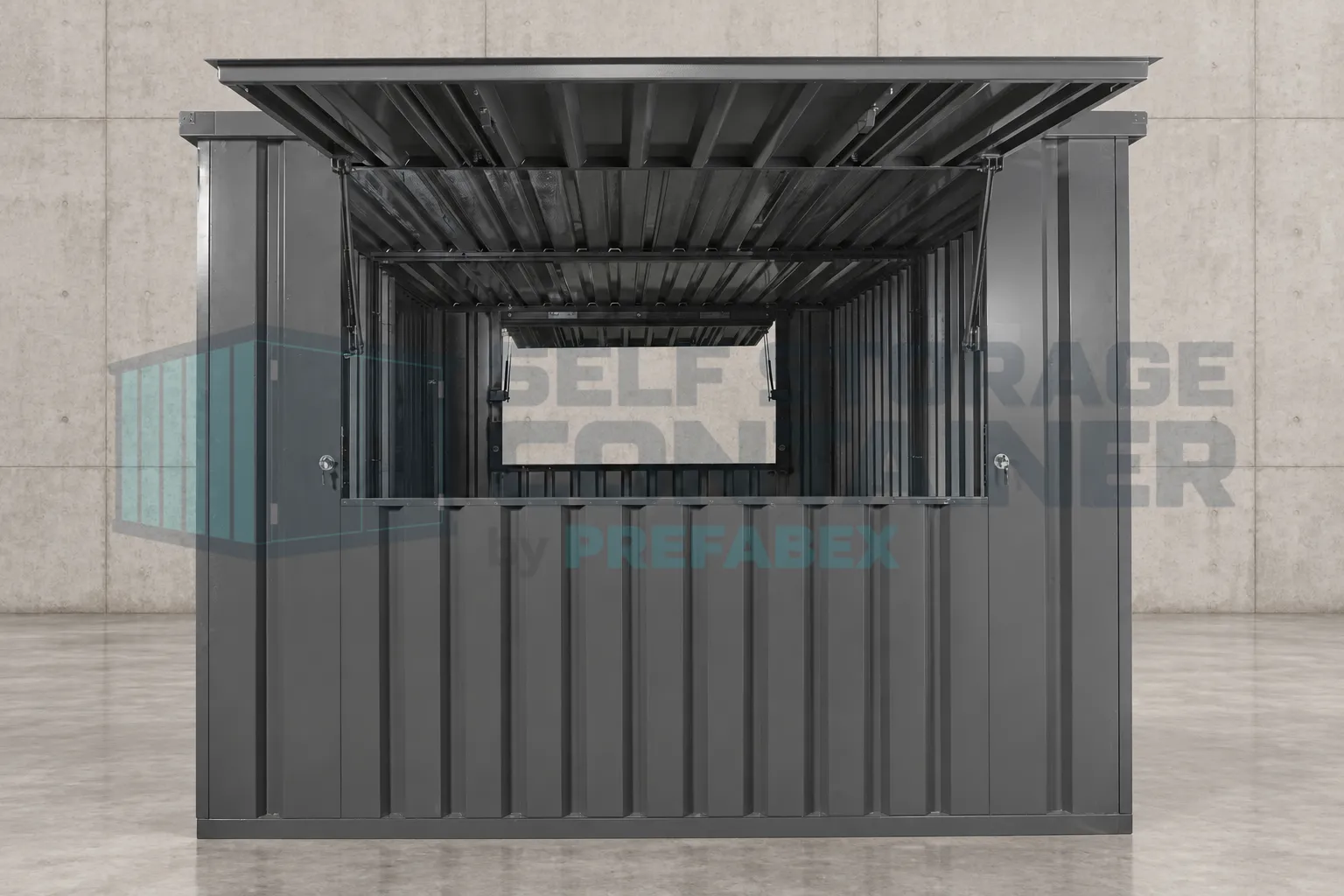

Two Wide Service Hatches

Each 3 m kiosk module can incorporate a service hatch measuring approximately 1.98 m wide × 1.03 m high.

When the modules are installed side by side, the two hatches create an extensive customer-facing service frontage. The openings can be used as separate operating points or as coordinated serving areas for a single business.

The raised hatch panels also provide partial overhead protection above the service openings, subject to installation conditions. When closed, they help secure the interior, equipment and stock outside operating hours.

Flexible Access and Internal Layout

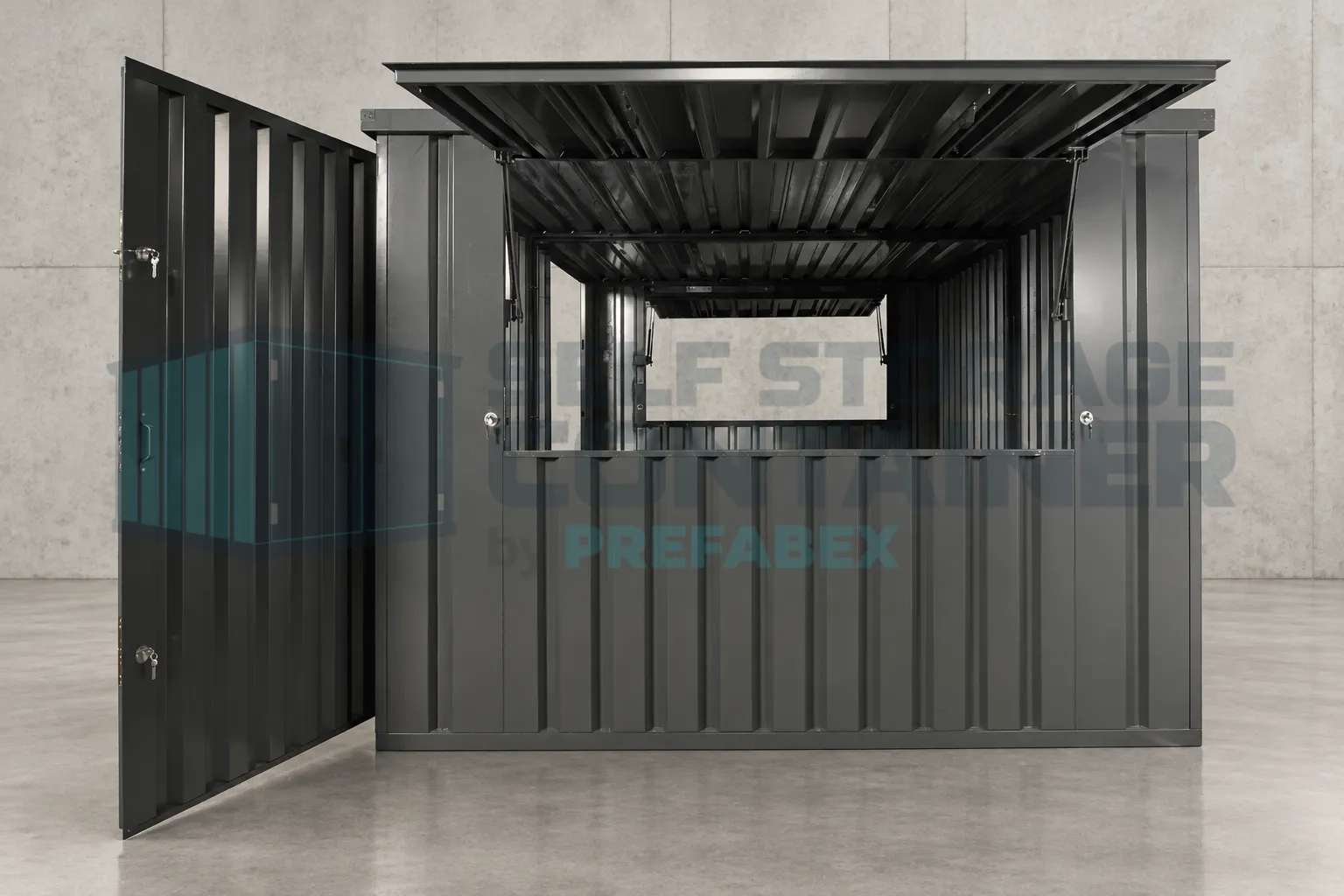

Each module is equipped with a generous door opening measuring approximately 1.75 × 2.05 m. Depending on the selected configuration, the two entrances can support separate staff access, stock movement, equipment installation and operational zoning.

The internal layout can be planned for:

• Service and payment counters

• Product display and shelving

• Food preparation equipment

• Storage and stock areas

• Customer collection points

• Staff working zones

• Electrical and communications equipment

The final position of openings, counters and internal connections should be confirmed before manufacturing.

Galvanised-Steel Construction

Both kiosk modules are manufactured using galvanised-steel components selected for structural strength, durability and resistance to everyday environmental exposure.

The profiled metal panels increase rigidity while creating a practical, low-maintenance finish. Galvanised-steel internal surfaces provide additional durability for intensive commercial and operational use.

Durable OSB Flooring

Each module is supplied with a 15 mm OSB board floor suitable for counters, shelving, stock and general operating equipment.

Each floor is designed to support up to 1,500 kg when the load is distributed evenly within that module. The two-module configuration therefore provides a combined distributed capacity of up to 3,000 kg, provided that loads remain appropriately distributed across both independent floor structures.

Heavy appliances, concentrated loads or equipment with small contact points should be reviewed before installation.

Efficient Flat-Pack Transportation

The side-linked kiosk is transported as two dismantled kiosk modules together with the compatible linking kit.

Each module weighs approximately 460 kg in flat-packed form, giving an estimated combined module weight of 920 kg, excluding the linking kit and optional accessories. The heaviest dismantled component of each module weighs approximately 122 kg.

Flat-pack delivery offers several benefits:

• Reduced shipping and storage volume

• More efficient international transportation

• Simplified handling at the destination

• Faster deployment than conventional construction

• Easier relocation or reconfiguration

• Efficient delivery of multiple kiosks in one shipment

• Expandable modular layouts for future requirements

Suitable lifting equipment, trained installers and a level supporting base must be provided during unloading and assembly.

Technical Specifications

Combined Configuration

Specifications of Each 3 m Module

Nominal product dimensions are used for commercial identification. Final assembled dimensions may vary according to the roof projections, linking components and approved project configuration.

Colour Options

The kiosk can be supplied in a range of standard RAL colours:

• RAL 9005 – Jet Black

• RAL 7021 – Black Grey

• RAL 7016 – Anthracite Grey

• RAL 5011 – Steel Blue

• RAL 3020 – Traffic Red

• RAL 1015 – Light Ivory

• RAL 6005 – Moss Green

• RAL 6018 – Yellow Green

• RAL 5010 – Gentian Blue

• RAL 9002 – Grey White

• RAL 1028 – Melon Yellow

• RAL 7040 – Window Grey

RAL 7016 – Anthracite Grey is particularly suitable for modern commercial and industrial applications. Colour availability should be confirmed when requesting a quotation.

Optional Equipment

Depending on the intended application, available options may include:

• Internal service counters

• Shelving and storage systems

• Electrical distribution

• Internal and external lighting

• Power and data outlets

• Thermal insulation

• Alternative door positions

• Modified service-hatch arrangements

• Security locks and accessories

• Adjustable levelling feet

• Custom exterior colours

• Preparation for customer branding

Optional equipment must be specified before production to confirm technical compatibility.

Expandable Modular System

A key advantage of the side-linked kiosk is its modular flexibility. The system can be planned as an initial two-unit installation and expanded with additional compatible modules where the site, structural design and access conditions allow.

Individual modules can also be dismantled and relocated if operational requirements change, making this configuration suitable for temporary, seasonal and developing commercial sites.

Manufactured and Exported Worldwide

Self Storage Container by Prefabex manufactures and supplies flat-pack kiosks and linked modular systems for commercial developments, construction projects, events, industrial facilities and public-service applications worldwide.

Our manufacturing and export capabilities support individual units and larger project orders. Kiosk layouts, colours, openings and selected accessories can be adapted to the operational and logistical requirements of each project.

Request a Quote

Contact us for pricing, production information and international delivery options for the 3 × 4 m Side-Linked Flat-Pack Kiosk.

For an accurate quotation, please provide:

• Required quantity

• Destination country and delivery location

• Intended use

• Preferred exterior colour

• Required service-hatch arrangement

• Internal layout requirements

• Electrical or insulation requirements

• Required accessories
